Get Back to Music
The Stereo Music Centres of the 1970s started the hi-fi revolution and our new R610 Music Console brings this highly popular concept back and completely up to date. With comprehensive connection and streaming capabilities, R610 has been designed and crafted for sound, to get people back to the joy of music.
- Apple AirPlay and Google Cast
- Spotify Connect, TIDAL Connect and Qobuz Connect built-in
- Apple Music, BBC Sounds, Deezer and more
- Hi-Res music file support up to 32-bit 384kHz
- Internet/DAB/DAB+ and FM tuners
- HDMI ARC/eARC connection
Designed to Perform
R610 Music Console delivers aesthetic appeal seldom seen among hi-fi components and this same devotion to detail is matched within. Powering R610 is a modern switch mode power supply, providing optimised powerlines to the system’s motherboard and latest generation digital amplifiers. With Burr-Brown DACs and audio grade components used throughout and a nominal output of 75 watts per channel, R610 is controlled and dynamic – but most importantly, it delivers a delightfully natural sound that makes music thoroughly enjoyable.e. Engineered from sustainable woods that are expertly spliced and recomposed, the resulting material closely resembles slow-growing hardwoods, but with true ecological credentials.
You’re in Control
Our RotoDial controller has been a distinctive part of our products since 2006. For 100 Series we have refined its design further and with tactile soft touch buttons and a precisely weighted control dial, it makes operating R610 a delight. Enhancing the operating experience is the crisp 5″ TFT display which confirms every command, as well as showing album and station artwork in perfect clarity. Also included is a matching rechargeable remote. Bluetooth connectivity means that aiming is not required, so you can relax and fully control R610 from afar.mponents and the best audio processing technologies, R410 creates a magical performance, that will have you discovering again your favourite artists and the delight that music and sound can bring.
Divine Connection
R610 provides all the connectivity you are ever likely to need, and with its powerful CPU it can process the highest quality audio streams. With Internet Radio, Spotify Connect, TIDAL Connect, Qobuz Connect, Apple AirPlay and Google Cast all built in, a world of music awaits to be discovered.
R610 also makes it easy to rediscover treasured physical music formats. A quality phono stage makes it simple to connect a turntable, while for CD playback we have our own compact disc player called R-CD100 which integrates seamlessly with R610 via the USB-C connector on the rear. Last but not least, R610’s HDMI ARC/eARC connection provides a great sound solution for those seeking a system that also elevates TV and film enjoyment to a new level.
Also included with R610 are a pair of premium quality speaker cables, so you have everything you need to connect and to start enjoying sound as it should be.odels.
R610 + Sabre-R
Perfect Partners
First introduced in 1985, we are proud to announce the return of one of our original iconic loudspeaker names. Uniting sonic excellence with elegant aesthetics, the R610 Music Console and Sabre-R bookshelf speakers partner perfectly to create a complete music system for the modern era and embody Ruark’s ethos of making products with soul that customers will cherish and enjoy for years to come.els so good.
Specifications
Audio
- Amplifier: 2 × 75W per channel Class-D
- Frequency response: 22Hz-22kHz +0/-3dB
- Enhancements: Stereo+, bass, treble, loudness
- DAC: Up to 32-bit/384kHz resolution
Features
- Display: Hi-contrast 5″ colour TFT
- Auto-Standby: Automatic power saving mode
- Adjustable input levels: Line-in, phono-in, optical and HDMI
- USB Charge Port: USB-C 5V 1A (5W)
- Software Updates: Over-the-air and USB
- Controller: Ruark RotoDial control system
- Remote control: Ruark RotoDial Bluetooth rechargeable remote
- Presets: 20 global presets
- App control: Via Spotify, BBC Sounds and more
- User interface languages: Multilingual
Connectivity
- Radio: Internet Radio, DAB/DAB+ and FM with RDS (87.5-108MHz)
- Multiroom capable: Via Apple AirPlay and Google Cast
- Wi-Fi: 802.11 a/b/g/n/ac/ax, WPS2, WEP, WPA, WPA2
- Streaming: Apple AirPlay and Google Cast
- Built-in music services: Spotify Connect, TIDAL Connect and Qobuz Connect
- Supported music services: Amazon Music, BBC Sounds, Deezer and more
- Bluetooth: 5.1, aptX HD, SBC, AAC, BLE, A2DP
- Ethernet: RJ45 connector 10/100 Mbps
- DLNA: UPnP™ DLNA media server compatible
- CD support: CD playback via optional R-CD100 CD player
- HDMI: ARC and eARC
- Line-input: Stereo RCA input (up to 2.3Vrms)
- Turntable input: Stereo RCA input with RIAA MM phono gain stage (up to 8mV)
- Line-output: Selectable Line-out/Pre-out, via stereo RCA connectors
- Subwoofer-output: Volume related full-frequency mono RCA connector
- Optical input: TOSLINK digital input up to 24-bit 96KHz
- USB-C: playback port
- Aerial connector :75Ω F-type
Supported Audio Formats
- FLAC, AIFF, ALAC and WAV: up to 32-bit 384kHz
- MP3: up to 48kHz 320kbps
- AAC/AAC-LC/HE-AAC/HE-AAC v2: up to 96kHz 320kbps
General Specifications

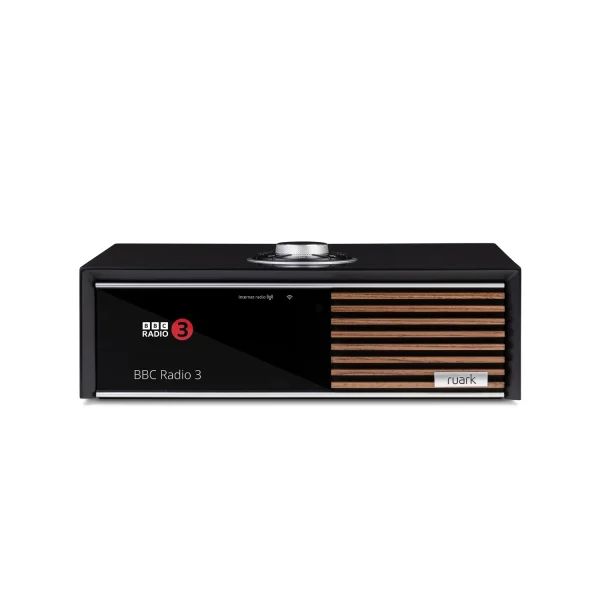

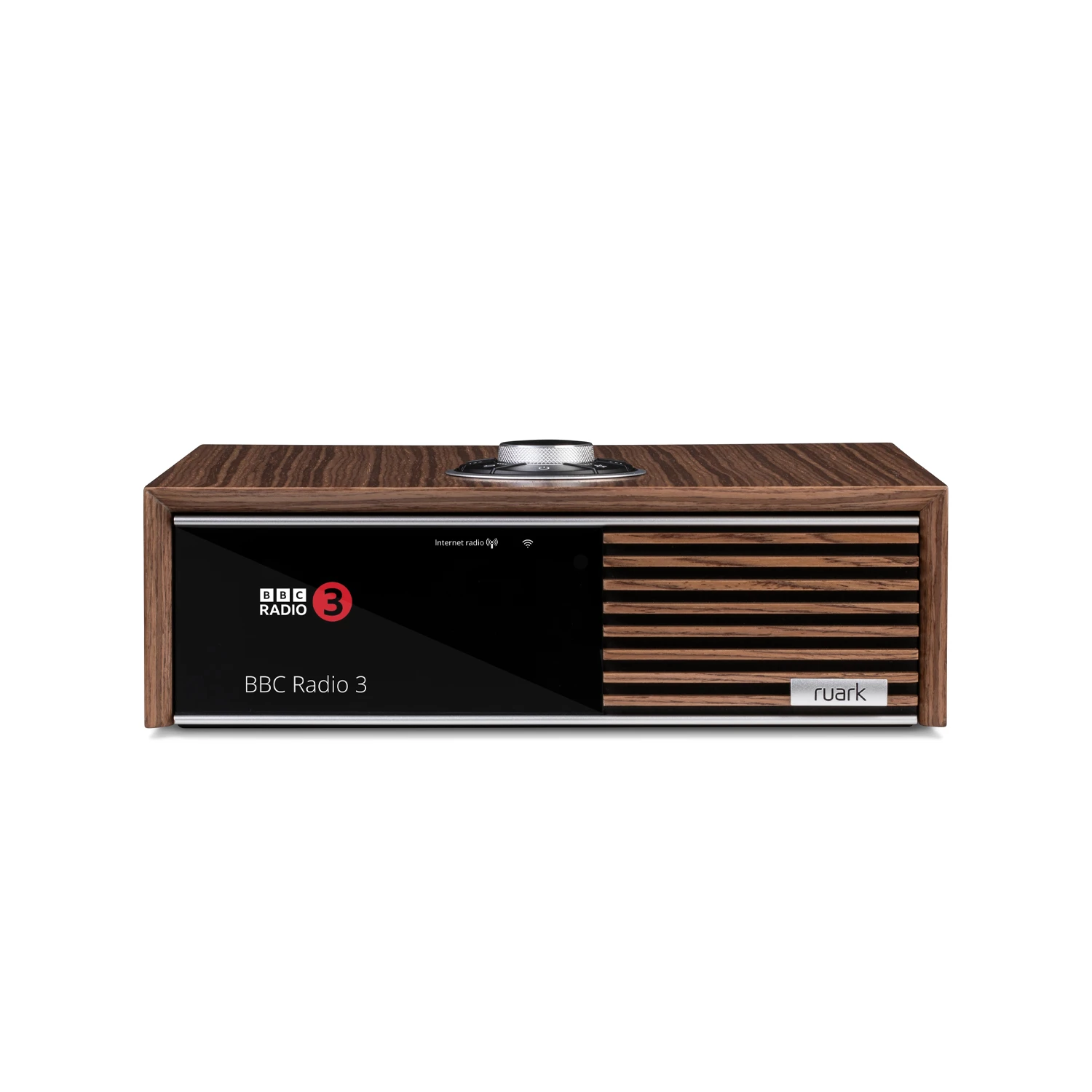

- Standard finishes: Fused Walnut veneer or Satin Charcoal lacquer
- Product dimensions:
H95 × W300 × D280mm (cabinet)
H107 × W300 × D280mm (with Rotodial controls) - Product weight: 4.1kg
- Product power input: 90-240VAC, 50-60Hz, 2.5A
- Power consumption: 2.0W network standby, 8.0W idle
- Gift Box Content:
R610 Music Console,
2m mains power cable,
Quick start guide,
RotoDial BT LE rechargeable remote,
2 × 3m oxygen-free copper, 400 strand speaker cables,
Telescopic aerial and spanner
