Ruark R810 High Fidelity Radiogram

A Musical Instrument for Music Lovers

Not all instruments are created the same and the best are crafted by artisans who understand the importance of materials and techniques in creating instruments that are beautiful to play and hear. The enjoyment of music is one of life’s greatest pleasures and like the finest instruments, the Ruark R810 has been designed and crafted to deliver stunning sound that will connect you closer to the music you love.

• Apple AirPlay and Google Cast
• Spotify Connect, TIDAL Connect and Qobuz Connect built-in
• Apple Music, BBC Sounds, Deezer and more
• Hi-Res music file support up to 32-bit 384kHz
• Internet/DAB/DAB+ and FM tuners
• HDMI ARC/eARC connection

An Object to Desire

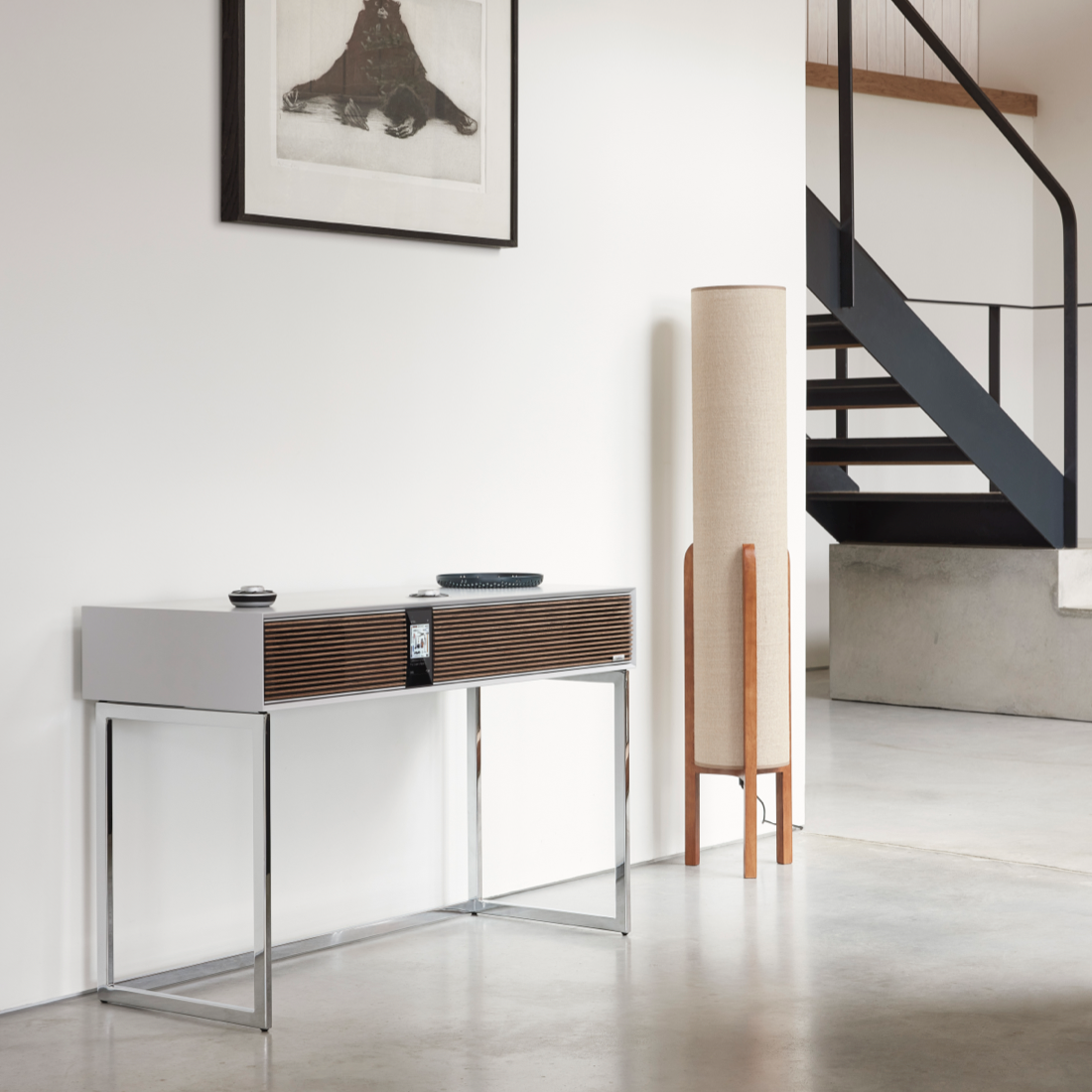

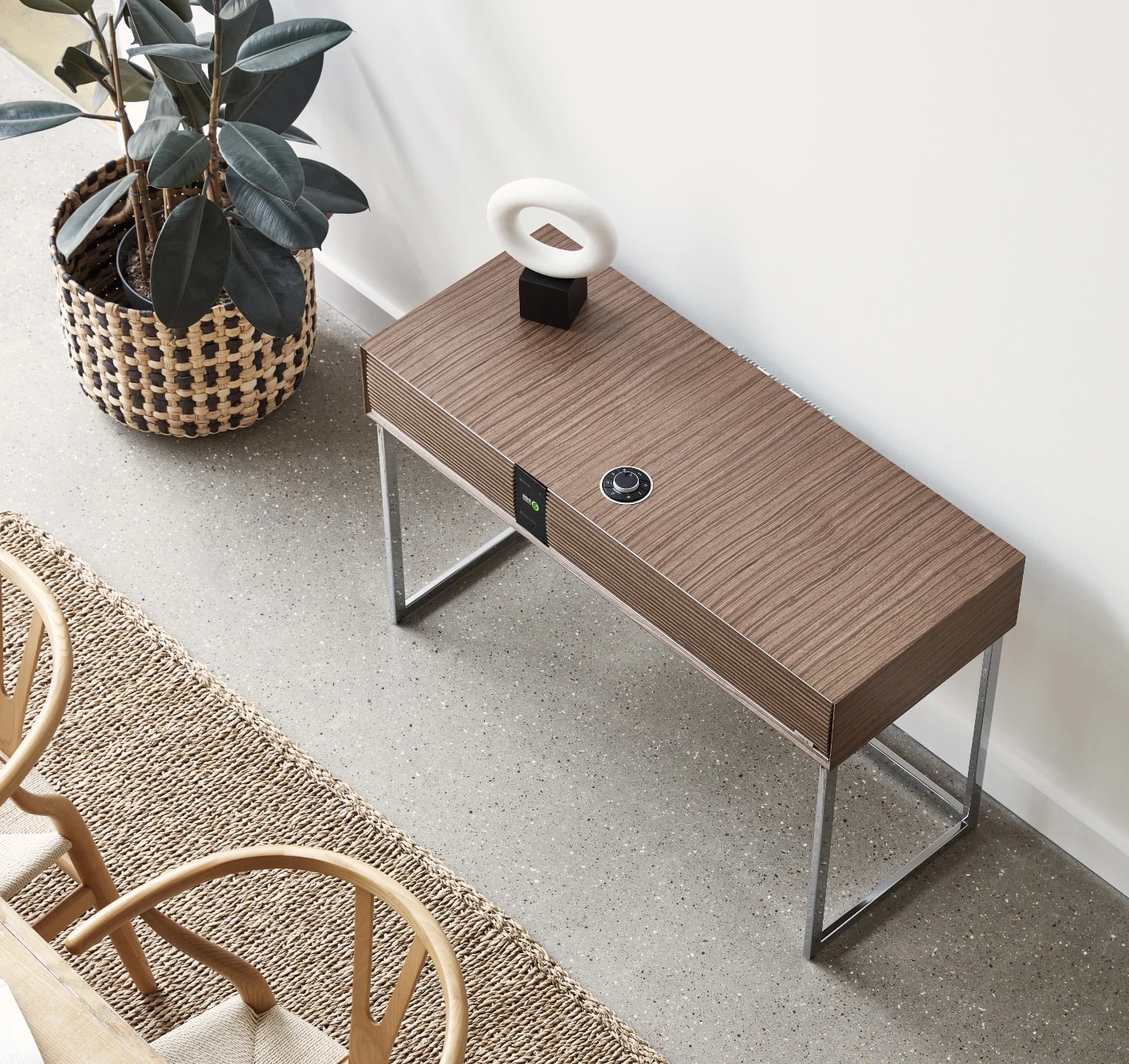

Like the iconic radiograms of yesteryear, the Ruark R810 is a product that has been designed to be seen. Enhancing R810’s aesthetics is the special material we’ve selected for the handcrafted grille and veneered cabinets. Made from sustainable woods that are spliced and reconstituted, the resulting grain patterns closely resemble slow-growing hardwoods but without the ecological impact. Combined with the precision formed trims and polished chrome stand, R810 radiates sophistication and like the finest furniture, it is an object that you will cherish and be proud to have on display in your home.

A Beautiful Display

Many systems today rely totally on smartphones and suchlike to provide information on settings and source, but with R810 the hi-resolution display provides all the information you need right in front of you and brings the look of Ruark R810 to life. With its portrait orientation the display intentionally emulates the way we view music applications on our phones and in conjunction with our new RotoDial controller makes R810 second nature to use. The intensity of the display in standby and active mode is also fully adjustable to suit your needs.

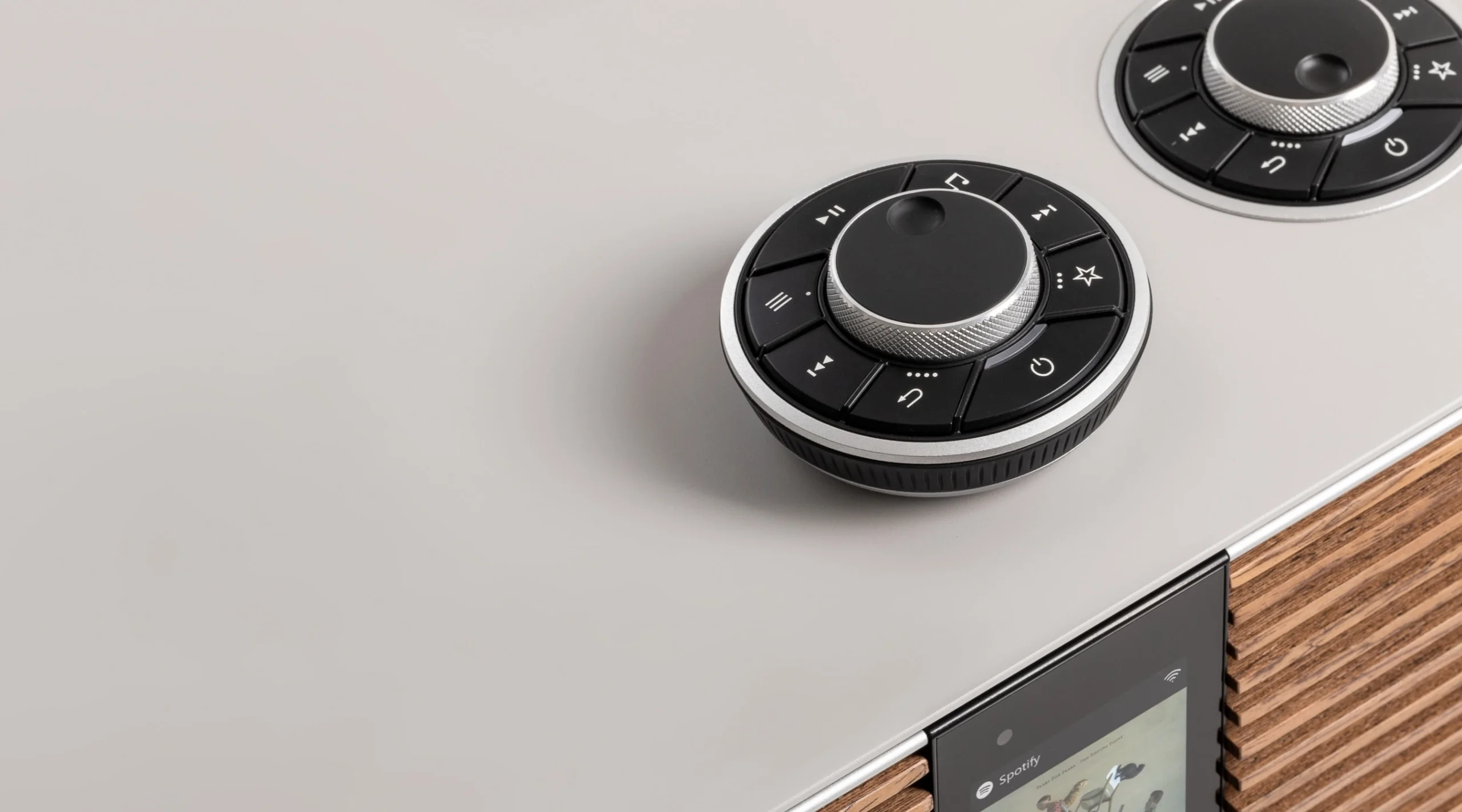

Tactile Controls

With touch-screens seemingly controlling everything these days, in our opinion you still can’t beat the positive click of a button or satisfying turn of a dial, particularly when it comes packaged as something unique and beautiful like our RotoDial control system, which for 100 Series has been improved and enhanced.

Included with R810 is a matching rechargeable remote. Bluetooth connectivity means that aiming is not required during operation and looking so good, it’s an item that you will want to leave out on display for everyone to touch and see.ou can also build a flexible multi-room system, linking R410 with other AirPlay and Google Cast speakers, including our R610 and R810 models.

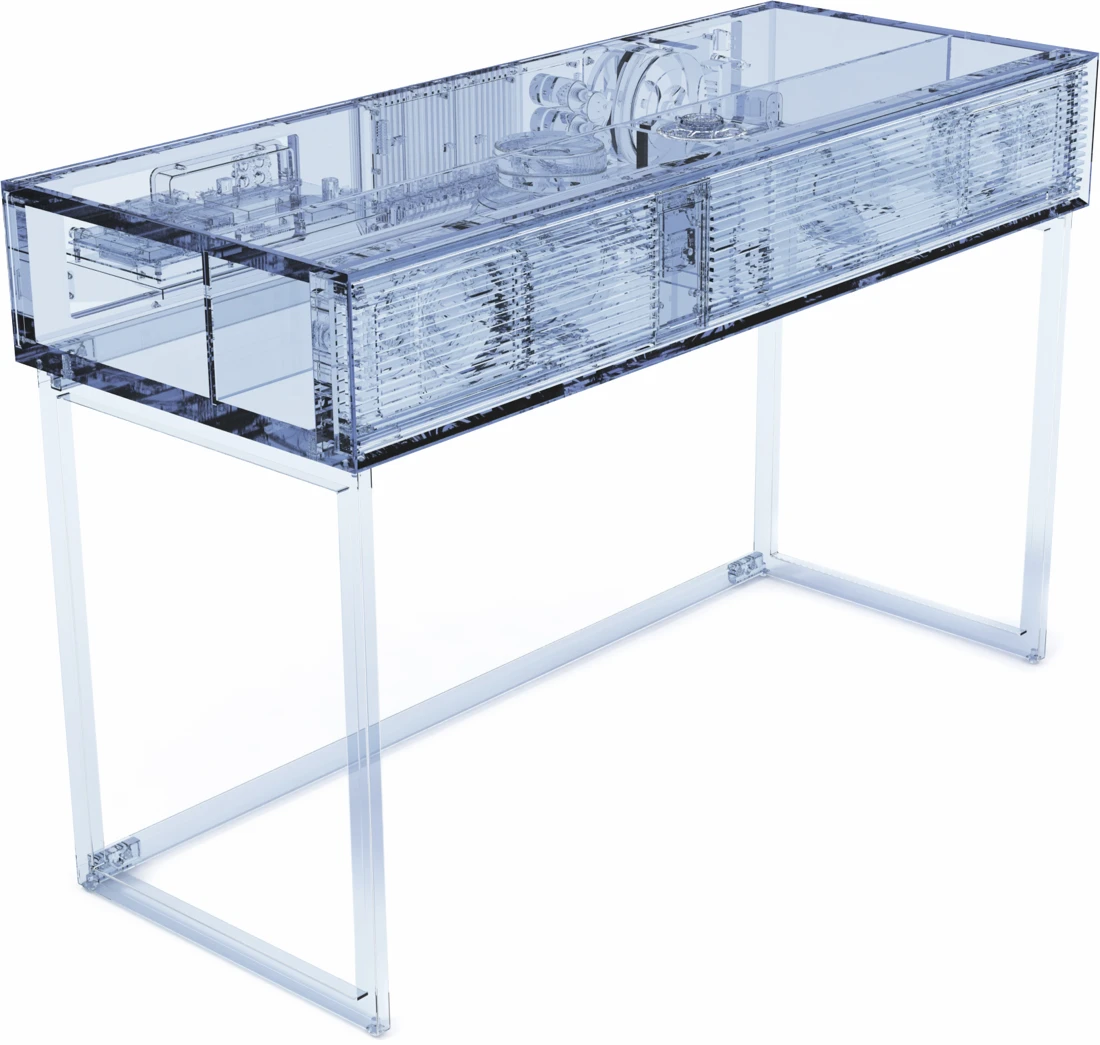

What Lies Beneath

We’re passionate about aesthetic design, but we know that it’s what lies beneath that is fundamental in creating great sound. An example of this is R810’s enclosure where inside it has been carefully divided into compartments, each which have been optimised for their intended task. Twin bass reflex compartments house our NS+ bass-midrange units and silk dome tweeters and the long throw subwoofer is housed beneath, in an infinite baffle enclosure for superbly controlled and extended bass.

Driving the system is a powerful five channel Class A-B discrete component amplifier. Five separate channels means that we can precisely control the response of each drive unit and with the latest sound processing technologies, music is produced with effortless ease with a stunning soundstage that will immerse you and fill your home with exquisite sound.o included with R410 is a matching rechargeable remote. Bluetooth connectivity means that aiming is not required – and like a quality watch, it’s an item that you will love to use, as it looks and feels so good.

A Complete AV Solution

With its HDMI ARC/eARC input R810 makes a great sound system for TVs and with our optional TV Mount, R810 is transformed from a music system into a complete audio/visual solution. Designed exclusively for R810, TVs and associated equipment can be tidily integrated together to make an awesome ‘all-in-one’ system that will be the centre piece for all your home entertainment needs, providing expansive sound that will make viewing television and films all the more captivating and enjoyable.er.

Specifications

Audio

• Frequency response: 30Hz – 22kHz
• Speaker units:
  2 × Ruark 27mm silk dome tweeters,
  2 × Ruark 100mm NS+ bass-mid units,
  1 × Ruark 200mm long throw subwoofer
• Amplifier: 180W RMS Discrete 5-channel Class A-B
• Enhancements:
  Adjustable treble, bass and sub settings,
  Stereo+ audio enhancement,
  Adaptive EQ provides ideal sound according to volume
• Cabinet type: Tuned reflex stereo enclosures and sealed subwoofer enclosure

Features

• Controller: Ruark RotoDial control system
• Remote Control: RotoDial BT LE rechargeable remote
• Display: Hi-Res 4″ colour TFT
• Presets: 20 Global presets
• App Control: Via Spotify, BBC Sounds and more
• Auto-Standby: Adjustable power saving mode
• Adjustable Input Levels: Line-in and optical
• USB Charge Port: USB-C 5V 1A (5W)
• Software Updates: Over-the-air and USB
• User Interface Languages: Multilingual

Connectivity

• Radio: Internet Radio, DAB/DAB+ and FM with RDS (87.5-108MHz)
• Multiroom capable: Via Apple AirPlay and Google Cast
• Wi-Fi: 802.11 a/b/g/n/ac/ax, WPS2, WEP, WPA, WPA2
• Streaming: Apple AirPlay and Google Cast
• Built-in music services: Spotify Connect, TIDAL Connect and Qobuz Connect
• Supported music services: Amazon Music, BBC Sounds, Deezer and many more
• Bluetooth: 5.1, aptX HD, SBC, AAC, BLE, A2DP
• Ethernet: RJ45 connector 10/100 Mbps
• DLNA: UPnP™ DLNA media server compatible
• CD support: CD playback via optional R-CD100 CD player
• HDMI: ARC and eARC
• Line-input: Stereo RCA input (up to 2.3Vrms)
• Turntable input: Stereo RCA input with RIAA MM phono gain stage
• Optical input: TOSLINK digital input up to 24-bit 96KHz
• USB-C: playback port
• Aerial Connector :75Ω F-type

Supported Audio Formats

• FLAC, AIFF, ALAC and WAV: up to 32-bit 384kHz
• MP3: up to 48kHz 320kbps
• AAC/AAC-LC/HE-AAC/HE-AAC v2: up to 96kHz 320kbps

General Specifications

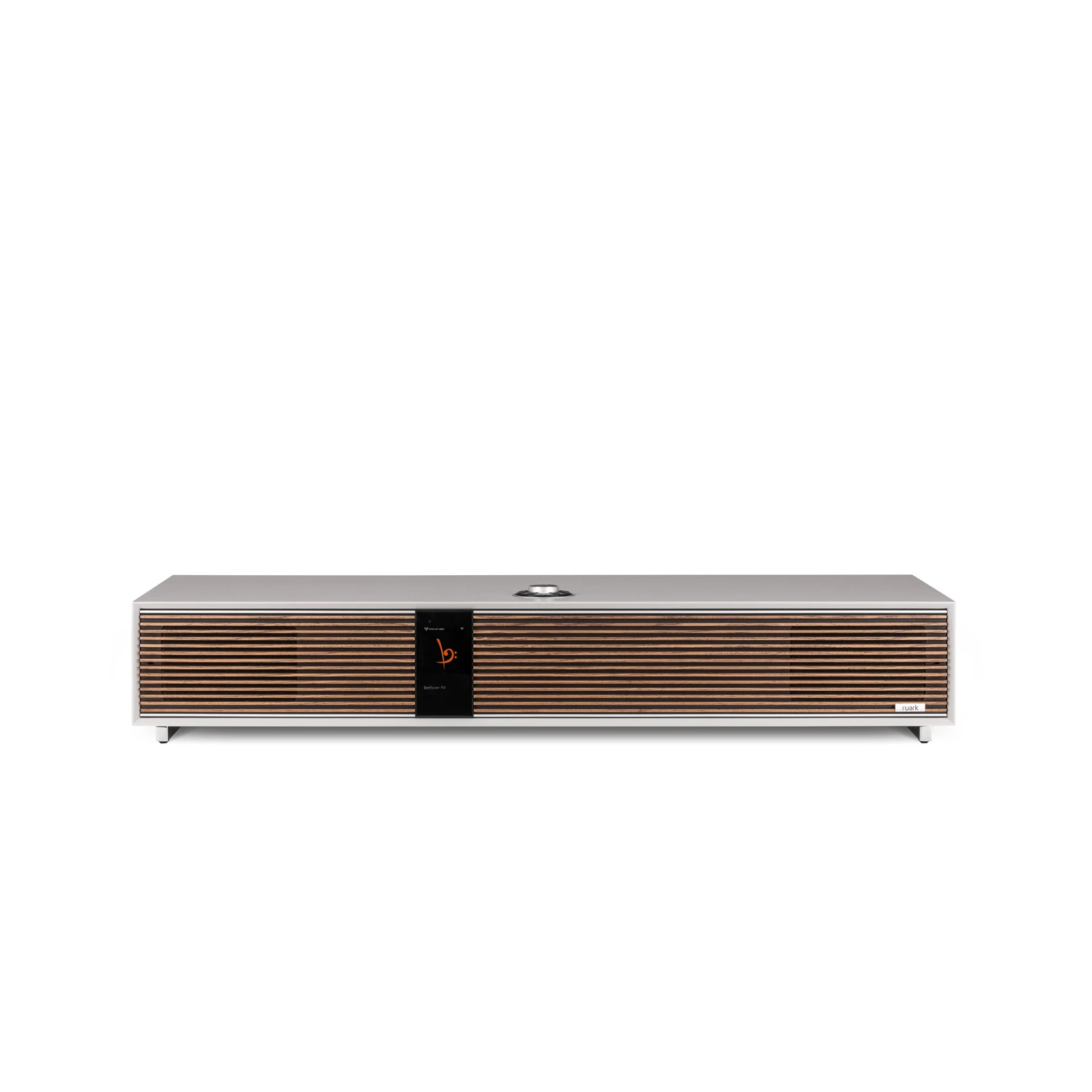

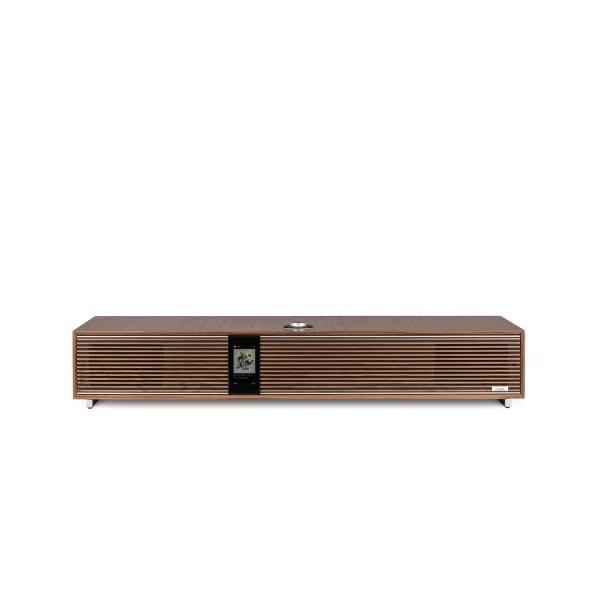

• Standard finishes: Fused Walnut Veneer or Soft Grey Lacquer
• Product dimensions:
  H152 × W1000 × D400mm (cabinet)
  H650 × W1000 × D435mm (inc. stand, dial and mains connector)
• Product weight: 27kg (30.7kg inc. stand)
• Product power input: 100-240VAC, 50-60Hz, 2.5A
• Power consumption: <2W standby. 10W idle
• Gift Box Content:
  2m mains power cable,
  1 × polished chrome frame stand,
  2 × polished chrome bar legs for mounting R810 on existing unit,
  Quick start guide,
  RotoDial BT LE rechargeable remote,
  Telescopic aerial and spanner

AV Mount Specifications sold separately

• Compatibility: R7 mk1/mk2/mk3 and R810
• Finish: black
• TV bracket: ±30° swivel adjustment, fully height adjustable, compatible with VESA MIS-E 100-400mm M6 & M8 mounting standard and most popular 4-screw TV mount systems
• AV shelf: removable toughened tinted glass and height-adjustable (80-140mm below product cabinet)
• Maximum TV weight: 25kg
• Product weight: 8.3kg
